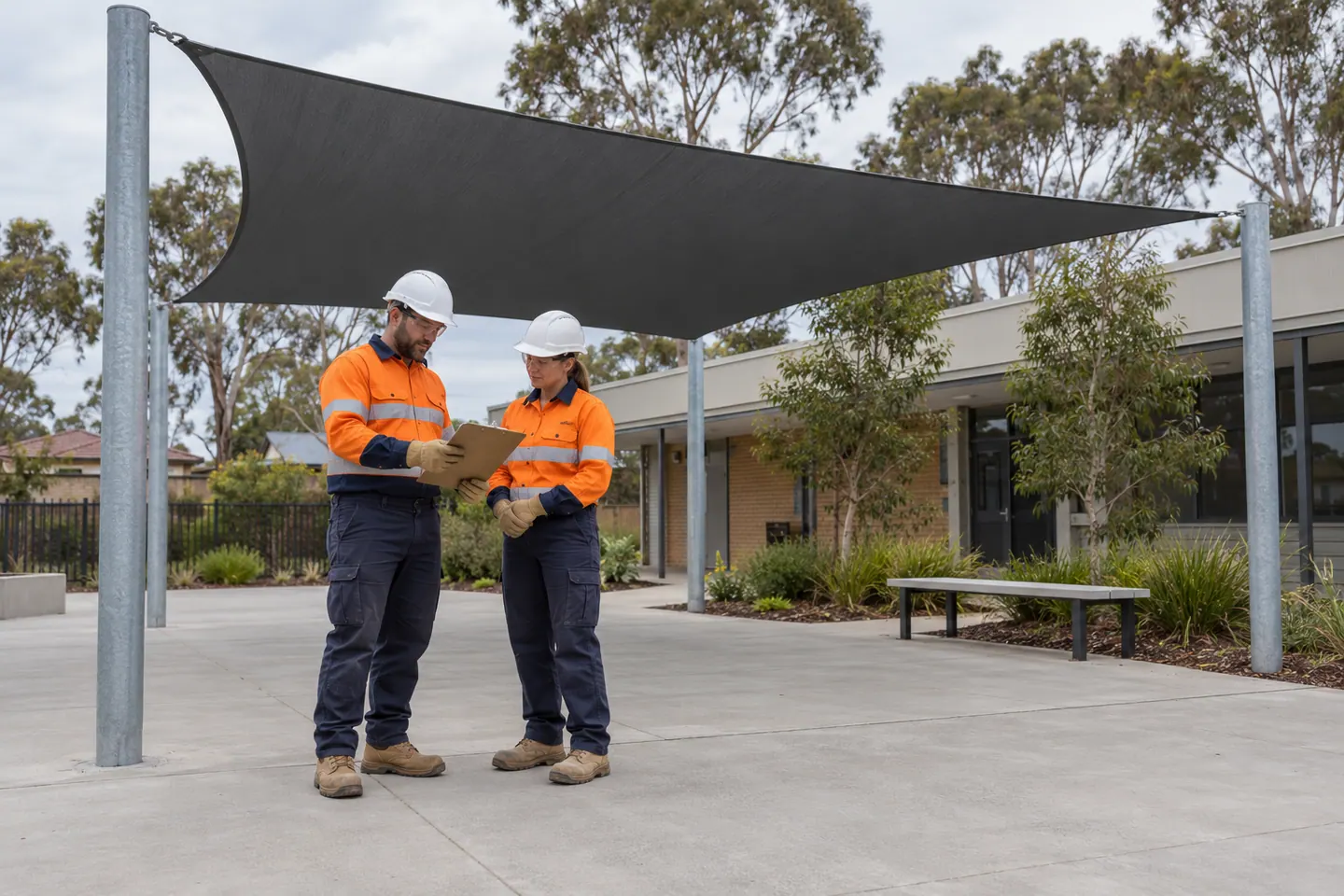

Shade Sail Installation Safe Work Method Statement

Yes, AS 4697 Shade Structures standard requires engineering design and certification for all shade structures regardless of size or application. This requirement exists because shade sails generate significant structural loads from fabric tensioning and wind forces that vary based on installation specifics including fabric area, corner heights, attachment point spacing, and local wind classifications. Engineering must be completed by registered structural engineer experienced in tensile fabric structures calculating site-specific loads per AS/NZS 1170.2 Wind Actions. The engineer provides structural drawings specifying footing design, pole specifications, hardware sizing, fabric tension limits, and installation tolerances. Certification documents verify the completed installation matches design intent and complies with structural safety requirements. Building surveyors and councils increasingly require engineering certification before issuing building approval or completion certificates particularly for commercial installations. Installing non-engineered shade sails creates significant liability exposure if structural failure causes injury or property damage. Insurance claims may be denied for non-compliant installations. DIY installations or those by non-qualified installers frequently lack proper engineering resulting in unsafe structures that fail during wind events or gradually deteriorate from inadequate component specifications. Even seemingly small residential shade sails generate loads exceeding 1,000kg across attachment points during moderate winds requiring proper structural analysis and footing design.

Shade sail fabric installation should only proceed in calm conditions with sustained wind speeds below 20 km/h and gusts not exceeding 30 km/h. Partially attached fabric acts as a large sail catching wind and generating significant forces that can overbalance workers at height, pull attached corners loose creating swinging hazards, or drag workers holding fabric on ground. Large commercial shade sails exceeding 100 square metres should only be installed in winds below 15 km/h due to the massive surface area amplifying wind forces. Monitor real-time wind conditions using handheld anemometer or access Bureau of Meteorology automatic weather station data for nearby locations providing current wind speed and gust information. Schedule fabric installation phases during historically calm periods typically early morning (6am-10am) or late afternoon/evening when winds generally subside. Avoid installation during seasonal high-wind periods or on days following weather fronts that bring sustained high winds. If winds increase during installation, immediately secure fabric in current position using temporary ties or ropes preventing uncontrolled movement then evacuate elevated work areas until conditions improve. Never attempt to continue installation in deteriorating conditions hoping to complete quickly - this decision-making error has caused numerous accidents where wind-caught fabric pulled workers from platforms or caused structure collapse from asymmetric loading. Thunderstorm warnings require immediate work suspension due to lightning risk to workers on metal structures and associated wind gusts potentially exceeding 60 km/h. Install weather monitoring app on mobile devices providing alerts for wind speed increases or severe weather warnings enabling proactive response before conditions become dangerous.

Footing depth depends on multiple factors including pole height, fabric area, soil bearing capacity, local wind classification, and engineering design approach. There is no single standard depth applicable to all installations. Typical residential shade sails with poles 3-4 metres above ground require footings 800-1200mm deep in firm clay or sandy soils with adequate bearing capacity. Soft or loose soils require deeper footings or larger diameter to achieve equivalent resistance. Higher poles, larger fabric areas, or locations in high wind zones require proportionally deeper and wider footings to resist overturning moments. Engineering calculations determine footing design by analyzing applied loads including fabric tension, dead load from structure weight, and dynamic wind loads, then sizing footings to prevent overturning and bearing capacity failure. For firm soil conditions, typical residential installations use 400-500mm diameter footings 900-1000mm deep with 20MPa concrete and minimal reinforcement. Commercial installations with poles exceeding 6 metres or fabric areas over 100 square metres may require footings up to 1200mm diameter and 2000mm deep with substantial reinforcement cages. Coastal locations in high wind zones or areas with seasonal cyclone risk require enhanced footing design accounting for extreme wind events. Sandy soils, recent fill, or locations with high water tables present challenging conditions requiring specialized engineering potentially including pile foundations extending to competent bearing strata. Never use rule-of-thumb footing sizes for structural applications - always obtain site-specific engineering determining appropriate footing dimensions for actual loading conditions and soil characteristics. Under-sized footings cause pole tilting or extraction during wind events potentially causing complete structure collapse.

Shade sail failures typically result from inadequate engineering, incorrect installation, or lack of maintenance rather than material defects. The most common failure mode is anchor point pull-out where footings prove inadequate for design loads or building attachments connect to non-structural elements. This occurs when installations lack proper engineering or installers substitute smaller footings than specified attempting to reduce costs. Footings in poor soil conditions or with inadequate depth simply extract from ground during wind events. Building attachments to hollow masonry, plasterboard, or roof framing not designed for lateral loads pull through substrates causing localized structural damage and shade sail collapse. Over-tensioning during installation is another frequent cause where installers tighten fabric beyond engineering specifications or simply keep tensioning until fabric appears tight. Over-tensioned fabric generates excessive loads on all structural components potentially exceeding design capacities and causing hardware failure, pole yielding, or anchor pull-out. Over-tensioning also stresses fabric beyond design limits causing premature failure particularly at corner reinforcing patches. Corrosion of hardware from inappropriate material selection causes progressive strength reduction eventually failing under normal loads. Installations using zinc-plated or galvanized hardware in coastal environments experience rapid corrosion as salt-laden moisture attacks protective coatings. Only marine-grade stainless steel (316 grade) withstands coastal conditions long-term. Poor fabric orientation allowing water ponding creates loads far exceeding design assumptions. A 50 square metre sail ponding just 25mm of water adds 1,250kg load distributed across attachment points potentially doubling or tripling design loads. Lack of maintenance allowing fabric UV degradation, hardware corrosion, or connection loosening creates progressive deterioration culminating in failure during normal wind events. Regular inspections identifying early deterioration enable repairs preventing catastrophic failure.

Work at heights exceeding 2 metres during shade sail installation requires fall protection per WHS regulations classifying such work as high-risk construction activity. The preferred control hierarchy prioritizes elimination of fall risks by using elevated work platforms (EWPs) with guardrails providing collective protection for all workers on platform. Select appropriate EWP type based on site conditions - scissor lifts for level surfaces and good overhead clearance, boom lifts for uneven terrain or reaching over obstacles. All EWP operators must hold current high-risk work license for platform class being operated. Maintain workers within platform guardrails with no climbing on structures or leaning beyond platform edges. Where EWP access proves impractical due to site constraints, property access limitations, or overhead obstructions, fall protection defaults to fall arrest systems using full body harness and energy-absorbing lanyard. Harnesses must comply with AS/NZS 1891.1 Class D specification with dorsal D-ring attachment point and adjustable leg/chest straps ensuring proper fit. Lanyards must incorporate energy absorber limiting arrest forces below 6kN and maximum 2 metres length preventing ground strike during fall arrest. Identify secure anchor points rated to 15kN minimum capacity - pole tops, structural building elements, or independent anchor systems. Never anchor to shade sail structure being installed as this provides no protection if structure fails. Workers must receive competent training in harness fitting, lanyard connection, pre-use inspection, and limitations of fall arrest systems. Ladders provide access only, not working positions - never work from ladders attempting to install hardware or manipulate fabric as this presents severe fall risk. Platform ladders with large standing surface and handrails prove safer than conventional extension or A-frame ladders. Some jurisdictions require rescue plans for working at heights specifying how fallen workers will be retrieved following arrest event before medical complications develop.

Verification of shade sail installation compliance requires systematic inspection against engineering documentation comparing actual installation to design intent. Begin by reviewing engineering drawings noting specified materials including pole steel grade and dimensions, fabric type and tensile strength, hardware sizes and grades, and footing design details. Verify installed poles match specified dimensions measuring outside diameter and wall thickness at multiple positions. Check pole verticality using spirit level on two faces - engineering typically specifies maximum 2 degree deviation from plumb. Measure actual corner heights and horizontal spacings comparing to design dimensions - ensure measurements within specified tolerances typically plus/minus 50mm. Inspect all hardware verifying correct grades installed particularly for marine-grade stainless steel required in coastal locations. Check turnbuckle positions showing mid-range adjustment capacity rather than fully extended indicating potential over-tensioning. Measure fabric tension using calibrated tension gauge or load cell comparing actual tensions to engineering specifications - typical residential installations specify 200-400 Newtons per corner whilst commercial applications may require 500-1000 Newtons. Inspect fabric surface for uniform tightness without wrinkles, sagging, or ponding areas indicating inadequate tension or incorrect corner height configuration. For commercial installations or structures in high-risk locations, engage the original design engineer to conduct final inspection certifying installation meets design intent and complies with AS 4697. Engineer inspection typically includes verification of footing dimensions (may require excavation inspection before concrete pour), pole specifications, hardware sizing, fabric tension, and overall structural configuration. Engineer provides certification documents suitable for council submission or building completion certificates. Photographic documentation of installation including close-ups of all corner connections, turnbuckle positions, and overall structure appearance provides baseline for future maintenance inspections. Maintain all engineering documentation, material certifications, installation photos, and inspection reports as permanent project record demonstrating due diligence and compliance with safety standards.
